Structure Pattern Bottom Sheet

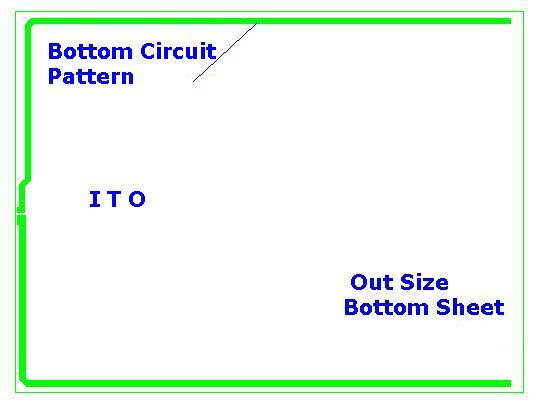

Bottom Sheet in Autocad is made with green color.Outer dimensions are made larger than the top sheet.


Contact Resistance at the ITO Bottom Circuit Pattern made contrary to the Top Sheet.



ITO is Indium Tin Oxide.
For a definition ITO see on this page
ITO area as shown in the picture is red


If the Top and Bottom Sheet in combination structure would be like drawing below.
